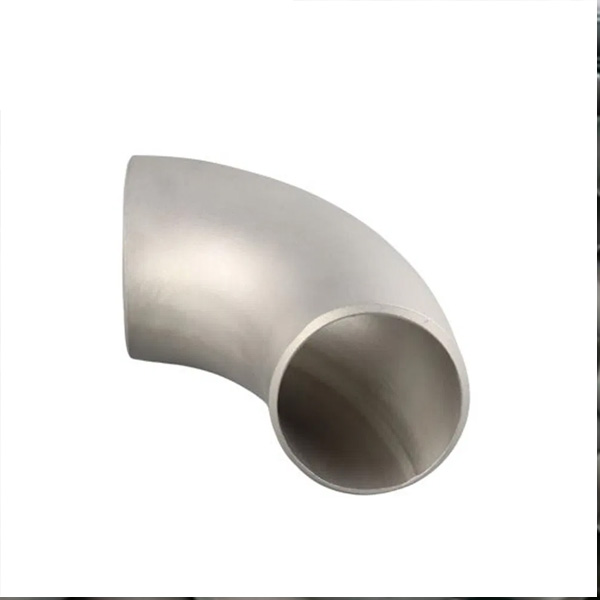

Made from 304/316L stainless steel or carbon steel, these elbows (90°/45°) are designed for pipelines in DN15-DN1200 sizes. Seamless hot-forming ensures smooth inner walls (Ra≤0.8μm), with pressure ratings up to PN25/Class 300 and temperature resistance from -46℃ to 450℃. Optional stainless steel/graphite gaskets meet API 594 sealing standards. Surface finishes include anti-corrosion galvanizing or mirror polishing (Ra≤0.2μm), complying with ASME B16.9. Modular design supports welded/threaded connections, widely used in oil, chemical, and water systems. X-ray and pressure-tested before shipment, they guarantee leak-proof performance for over 10 years, minimizing maintenance costs.
| Name | Stainless Steel ASME B16.9 SCH 45 90 Degree Pipe Fittings Elbow |
|---|---|
| Type | LR30,45,60,90,180;SR30,45,60,90,180,Customized |
| Radius Type | 1D,1.5D,2.0D,2.5D,3.0D,4.0D,6D,7D,Customized |
| Size | 1/2-48 Inch |
| Thickness | 0.5mm-60mm |
| End | Beveled end, Plain end |
| Grade | SS304, SS316L |
| Standard | ASME B16.9, ASTM A234, ASTM A240, ANSI B16.9, B16.25, B16.28, MSS SP-75<br>DIN2605, DIN2615, DIN2616, DIN2617<br>JIS B2311, B2312, B2313<br>EN10253-1, EN10253-2<br>GB 12459 |
| Pressure Range | SCH5S,SCH10S,SCH20,SCH30,SCH40,SCH60,SCH80,SCH100,SCH120,SCH140,SCH160,XXS |
| Formed Type | Ball Forming |
| Raw Material Technology | Pressed from Tube |
| Surface Type | Sand Blasting, Sand Rolling, Acid Cleaning |
| Connection Type | Butt Welded |
| Productivity | 20000PCS/Month |
| Application | Chemical, Power, Construction, Petroleum, Gas, Water, Steam |
| Warranty | 1 Year |
| Package | Cartons, Pallet, Cases |
| Production Period | Within 15-60 Days Upon Order Quantity |
| Payment Term | L/C, T/T, WU, etc. |
| Certificate | ISO, PED |
| Advantages | 1. Customized dimensions to meet different requirements<br>2. Quality control from raw materials to the final products<br>3. Abundant stock<br>4. Rich export experience<br>5. Reliable shipping forwarder |
